Monday, 5 March 2018

How to Replace a Faulty Hot-Plug or Non Hot-Plug Hard Disk Drive in a RAID Configuration

Just received inform that our server getting faulty on one in six HD. because we already use RAID 5 the sistem still running normally, but we have to replace immediately,  so the sistem can be rebulid and running properly.

RAID (redundant array of independent disks; originally redundant array of inexpensive disks) is a way of storing the same data in different places on multiple hard disks to protect data in the case of a drive failure. However, not all RAID levels provide redundancy.

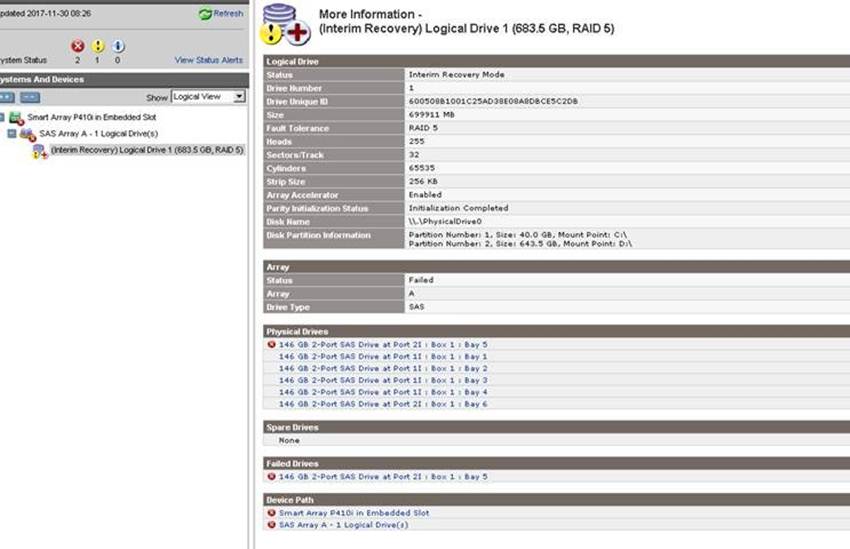

Indicator from ACU


Effects of a hard drive failure on logical drives
When a drive fails, all logical drives that are in the same array are affected. Each logical drive in an array might be using a different fault-tolerance method, so each logical drive can be affected differently.

  • RAID 0 configurations do not tolerate drive failure. If any physical drive in the array fails, all RAID 0 logical drives in the same array also fail.
  • RAID 1 and RAID 10 configurations tolerate multiple drive failures if no failed drives are mirrored to one another.
  • RAID 5 configurations tolerate one drive failure.
  • RAID 50 configurations tolerate one failed drive in each parity group.
  • RAID 6 configurations tolerate two failed drives at a given time.
  • RAID 60 configurations tolerate two failed drives in each parity group.
  • RAID 1 (ADM) and RAID 10 (ADM) configurations


Indicator from physical server


Replacing drives
The most common reason for replacing a drive is that it has failed. However, another reason is to gradually increase the storage capacity of the entire system.
NOTE:
In fault-tolerant configuration, hot-plug hard drives can be replaced when server is ON, but in case of a Non-hot-plug hard drive, it should be replaced when server is OFF.
For systems that support hot-pluggable drives, if user replace a failed drive that belongs to a fault-tolerant configuration while the system power is on, all drive activity in the array pauses for 1 or 2 seconds while the new drive is initializing. When the drive is ready, data recovery to the replacement drive begins automatically.

For systems that support non-hot-pluggable drives, if user replace a drive belonging to a fault-tolerant configuration while the system power is off, a POST message appears when the system is next powered up. This message prompts user to press the F1 key to start automatic data recovery. If user do not enable automatic data recovery, the logical volume remains in a ready-to-recover condition and the same POST message appears whenever the system is restarted.
Note :  in the case I very difficult find some type and model HD, Sowe can replace with different HDD, but the size must be greater from previously,you cannot replace with a smaller size disk
Automatic data recovery (rebuild)
When user replace a drive in an array, the controller uses the fault-tolerance information on the remaining drives in the array to reconstruct the missing data (the data that was originally on the replaced drive) and then write the data to the replacement drive. This process is called automatic data recovery or rebuild with indicator led blinking blue. If fault tolerance is compromised, the controller cannot reconstruct the data, and the data is likely lost permanently.

How to Print Header in Excel Always Show in Each Page

This article will be maybe helpful for someone if they want to prion in excel data that have a lot of data then need header every page. Oke lets go.

Go to tab Page Layout and chose Print Titles

How to Print Header in Excel Always Show in Each Page


In the page setup you can manage configure as you can,

  • Rows to repeat at top = select you header as you want to including print each page
  • Checked Gridlines
  • Print preview for preview format which you want print, if the format was appropriate you can direct print.
How to Print Header in Excel Always Show in Each Page

How To Customize Ribbon Menu in Excel

Very confusing suddenly getting menu ribbon in Excel lost. Currently Excel  have some menu ribbon like Home, Insert, and etc.



So if you want to hidden or show the ribbon menu just right clik on ribbon menu and Customize the ribbon menu



In the next menu , you can manage what’s ribbon will be show or hidden

How to Add 32-bit Printer Drivers on Windows Server 64-bit

Hello Friends, I just getting confused on this situation, in my case I have different type system Windows 7 that is Windows 7 32-bit and 64-bit in my domain. So my server is using Windows Server 2008 64-bit. Is a have different with client in domain. So for manage printer server system 32-bit is cannot directly connect they need driver 32-bit, because the server running on 64-bit.

Scenario is the client and server is different system model windows.
Steps:

  1. Download driver printer for two systems 32bit and 64bit also you can get cd from manufacturer when you purchase.
  2. Install driver 64bit and share your printer. Test it using print test page on printer. Make sure printer is running.
  3. Find print in device and printer, just right click on printer  then choose properties and sharing

  4. Checklist on X86, means you will be add driver 32bit for this server


  5. Locate your driver file usually name is autorun.inf depend your driver, then Ok


  6. Wait sometimes, the procces will be add driver 32bit in 64bit system
  7. If add driver success, in the properties printer will be checklist automatically on X64 and x86


  8. Then trying to connected printer from client system 32bit to printer server system 64bit using network ( make sure the printer is already share ), the system will be downloading driver and connect automatically without install driver

Thursday, 8 December 2016

How to Root Lenovo A6000/A6000 Plus Android Kitkat

Vixolite - How to root Lenovo A6000/A6000 Plus Android Kitkat. I am glad that I have successfully installed SuperSU app on my lenovo A6000 which running Android Kitkat. And now I will share with you how to root Lenovo A6000 easily.

How to Root Lenovo A6000/A6000 Plus Android Kitkat

Please note the rooting procedure should be followed as described below. In case the procedure goes wrong, there's a high probability that your smartphone will be bricked. Vixolite will not be held responsible for any damages to your handset.

Disclaimer

Rooting or installing a custom rom or recovery might brick your device or your  device may act abnormally and you also lose the device warranty. You may even get a dead SD card which might not work or you can leave your device in a dead state.

Before going through the entire tutorial please be advised that it is your own responsibility to go further. We are not liable for any loss of data or any property of yours by any mean.

Pre-Requisites Before Root Lenovo A6000/A6000 PLus Kitkat


  1. Make sure your Lenovo A6000/A6000+ running Android Kitkat
  2. Backup of your personal files i.e the songs/videos/photos/contacts etc
  3. Make sure the A6000 has minimum 70% battery life available. It will prevent unexpected device shutdown (due to battery drain)
  4. Navigate to Settings » Developer Options, enable USB Debugging mode
  5. Make sure that the device is already installed TWRP Recovery. See how to install Lenovo A6000 TWRP Reocvery 2.8.6.1 (Android Kitkat)
  6. Download and install the USB driver for Lenovo A6000/A6000 Plus
  7. Download SuperSU v2.46


How to Root Lenovo A6000 Running Android Kitkat


  1. Copy SuperSU-v2.46-favnetsoft.com.zip from PC to SD card through USB cable
  2. Switch off your device then press and hold the Volume Down, Volume Up and Power Button simultaneously to boot into TWRP recovery mode
  3. On TWRP recovery menu, go to Install
  4. Select Install zip and navigate to SuperSU-v2.46-favnetsoft.com.zip
  5. Swipe to confirm Installation of zip
  6. Once finished, navigate to 'Go back' menu and select reboot system to reboot the phone

Wednesday, 7 December 2016

Install TWRP Lollipop v3.0.0.1 on Lenovo A6000/A6000 Plus

Vixolite - How to install TWRP recovery v3.0.0.1 (SevenMaxs) on Lenovo A600/A6000 Plus Lollipop. Today's guide lets you know how to install Lenovo A6000/A6000 Plus TWRP recovery 3.0.0.1 which running Android Lollipop (5.x.x 64-bit).

Install TWRP 3.0.0.1 (SevenMaxs) Lenovo A6000/A6000 Plus

As we know, custom recovery and root access is not right for everyone, but users who want to get latest Android version via custom ROMs, remove manufacture’s junk, install certain apps, etc. requires both custom recovery and root access.

Disclaimer

Rooting or installing a custom rom or recovery might brick your device or your  device may act abnormally and you also lose the device warranty. You may even get a dead SD card which might not work or you can leave your device in a dead state. Before going through the entire tutorial please be advised that it is your own responsibility to go further. We are not  liable for any loss of data or any property of yours by any mean.

Pre-Requisites Before Install TWRP Recovery Kitkat


  1. Backup of your personal files i.e the songs/videos/photos/contacts etc
  2. Make sure your Lenovo A6000/A6000+ running Android Lollipop
  3. Battery level must be at least 50% to avoid power interruption
  4. Enable USB debugging mode on your device
  5. Download and install the USB driver for Lenovo A6000/A6000 Plus on the computer
  6. Download and Install Minimal ADB and Fastboot Tools v1.2
  7. Download and extract the TWRP 3.0.01 (Lollipop) by SevenMaxs to the computer


How to Install TWRP 3.0.0.1 (Lollipop) on Lenovo A6000/A6000 Plus


  1. Turn off your device then reboot into Bootloader/Fastboot mode. Press and hold the Volume Down and Power keys at the same time till you see some text on the display.
  2. Connect the Lenovo A6000/A6000 Plus to the computer using a USB cable
  3. Copy the extracted file (recovery.img) to the folder of Minimal ADB and Fastboot:
    Windows (x86): C:\Program Files\Minimal ADB and Fastboot
    Windows (x64): C:\Program Files (x86)\Minimal ADB and Fastboot

    Minimal ADB and Fastboot directory

  4. Open a command window inside the folder where your TWRP recovery.img file is saved. To do that, “Shift + Right click” on any empty white space inside the folder and then select “Open command window here” from the context menu.

    Minimal ADB and Fastboot Command


  5. In the command box type the following
    fastboot devices
  6. Now type the following command to flash TWRP recovery image
    fastboot flash recovery recovery.img
  7. Reboot your phone using the following command
    fastboot reboot

Monday, 5 December 2016

How to Restore the Warranty on Lenovo A6000/A6000 Plus

Vixolite - How to restore the warranty on your Lenovo A6000/A6000 Plus. As we know, Install custom ROM, rooting or tweak your Android device will void your device warranty. Therefore, if during the processes your handset will get bricked, or damaged then you will not be able to reclaim its retail or demand for a free intervention, basically, you will be by yourselves.

How to Restore the Warranty on your Lenovo A6000/A6000 Plus

For restoring the warranty you will have to reset the flash counter of your device. In order to do so, you will have to restore your Lenovo A6000/A6000 Plus to its initial state, which means that mainly you have to downgrade to stock ROM, or upgrade to the Latest firmware of your device. And now, on this article I will guide you how to restore the warranty on your Lenovo A6000/A6000 Plus.

Disclaimer

We won’t be held responsible for anything happening to your device during this process. We will help you during such situation. Please read follow each and every step as mentioned below.

Pre-Requisites Before Restore the Warranty


  • Backup of your personal files i.e the songs/videos/photos/contacts etc
  • Make sure the battery capacity of more than 50%
  • Download and Install Lenovo A6000 USB Driver
  • On your computer download stock ROM from the link below. Please choose the relevant version according to your device.


How to Restore the Warranty on Lenovo A6000/A6000 Plus


  • Connect your Lenovo A6000/A6000 Plus to PC using USB cable (make sure Lenovo A6000 Driver has been installed)
  • Transfer the Stock ROM file you have downloaded to your phone’s SD card
  • Disconnect the devices when done
  • Power off your device, wait a few seconds and then press and hold the Volume Down, Volume Up and Power Button simultaneously to boot into stock recovery mode

    Lenovo A6000 Stock Recovery

  • From the main menu of recovery select the apply update from sd card and pick the Stock ROM file.
  • Then, follow on screen prompts and resume the update operation.
  • When done, from main menu of recovery select “wipe data factory reset” and “wipe cache partition” then select “reboot system now”.

Troubleshoot Failed Update


  • Extract Stock ROM file on PC
  • Copy System.zip and CountryCode.ota.zip to SD card

    extract kraft a6000 s061

  • Go to recovery mode
  • Install System.zip then CountryCode.ota.zip
  • Wait until process upgrade finish

Sunday, 4 December 2016

How to Revert Back to Lenovo A6000/A6000 Plus Stock Recovery

Vixolite - How to revert back to Lenovo A6000/A6000 Plus Stock recovery. In Android device custom recovery helps you to perform lots of task such as install custom themes and flash files, install custom ROMs on the device and more. Without custom recovery you can’t do such type of task on your android device.

How to Revert Back to Lenovo A6000/A6000 Plus Stock Recovery

Flashing this recovery environment onto your device replaces the default, stock recovery environment with a third-party, customized recovery environment. This is a bit like flashing a custom ROM like CyanogenMod but, instead of replacing your device’s Android operating system, it replaces the stock recovery.


Now, on this article I will guide you how to revert back Lenovo A6000/A6000 Plus stock recovery from custom recovery.

Disclaimer

We won’t be held responsible for anything happening to your device during this process. We will help you during such situation. Please read follow each and every step as mentioned below.

Pre-Requisites Before Flash Lenovo A6000?A6000 Plus Stock Recovery


  • Backup of your personal files i.e the songs/videos/photos/contacts etc
  • Battery level must be at least 50% to avoid power interruption
  • Enable USB debugging mode on your device
  • Download and install the USB driver for Lenovo A6000/A6000 Plus on the computer
  • Download and Install Minimal ADB and Fastboot Tools v1.2
  • Download and extract the Stock recovery from the link below. Please choose the relevant version according to your device.

How to Flash Lenovo A6000/A6000 Plus Stock Recovery


  1. Turn off your device then reboot into Bootloader/Fastboot mode. Press and hold the Volume Down and Power keys at the same time till you see some text on the display.
  2. Connect the Lenovo A6000/A6000 Plus to the computer using a USB cable
  3. Copy the extracted file (recovery.img) to the folder of Minimal ADB and Fastboot:
    Windows (x86): C:\Program Files\Minimal ADB and Fastboot
    Windows (x64): C:\Program Files (x86)\Minimal ADB and Fastboot

    Minimal ADB and Fastboot directory

  4. Open a command window inside the folder where your TWRP recovery.img file is saved. To do that, “Shift + Right click” on any empty white space inside the folder and then select “Open command window here” from the context menu.

    Minimal ADB and Fastboot Command


  5. In the command box type the following
    fastboot devices
  6. Now type the following command to flash TWRP recovery image
    fastboot flash recovery recovery.img
  7. Reboot your phone using the following command
    fastboot reboot

Monday, 28 November 2016

How to Flash Lenovo A6000 Stock Recovery

Vixolite - How to flash Lenovo A6000 stock recovery. On my previous articles, I have published tutorial how to install/flash Lenovo A6000 TWRP Recovery for Kitkat and Lollipop. And now, I will share simple trick how to restore custom recovery like TWRP to the stock recovery on Lenovo A6000.

How to Flash Lenovo A6000 Stock Recovery

Disclaimer

We won’t be held responsible for anything happening to your device during this process. We will help you during such situation. Please read follow each and every step as mentioned below.

Pre-Requisites Before Install Lenovo A6000 Stock Recovery

  1. Backup of your personal files i.e the songs/videos/photos/contacts etc
  2. Battery level must be at least 50% to avoid power interruption
  3. Enable USB debugging mode on your device
  4. Download and install the USB driver for Lenovo A6000/A6000 Plus on the computer
  5. Download and Install Minimal ADB and Fastboot Tools v1.2
  6. Download and extract the Lenovo A6000 Stock Recovery

How to Flash Lenovo A6000 Stock Recovery

  1. Turn off your device then reboot into Bootloader/Fastboot mode. Press and hold the Volume Down and Power keys at the same time till you see some text on the display.
  2. Connect the Lenovo A6000/A6000 Plus to the computer using a USB cable
  3. Copy the extracted file (recovery.img) to the folder of Minimal ADB and Fastboot:
    Windows (x86): C:\Program Files\Minimal ADB and Fastboot
    Windows (x64): C:\Program Files (x86)\Minimal ADB and Fastboot

    Minimal ADB and Fastboot directory

  4. Open a command window inside the folder where your TWRP recovery.img file is saved. To do that, “Shift + Right click” on any empty white space inside the folder and then select “Open command window here” from the context menu.

    Minimal ADB and Fastboot Command


  5. In the command box type the following
    fastboot devices
  6. Now type the following command to flash TWRP recovery image
    fastboot flash recovery recovery.img
  7. Reboot your phone using the following command
    fastboot reboot
